Ford Transit Passenger Van XLT (2013-Current) Slimline II Roof Rack Kit

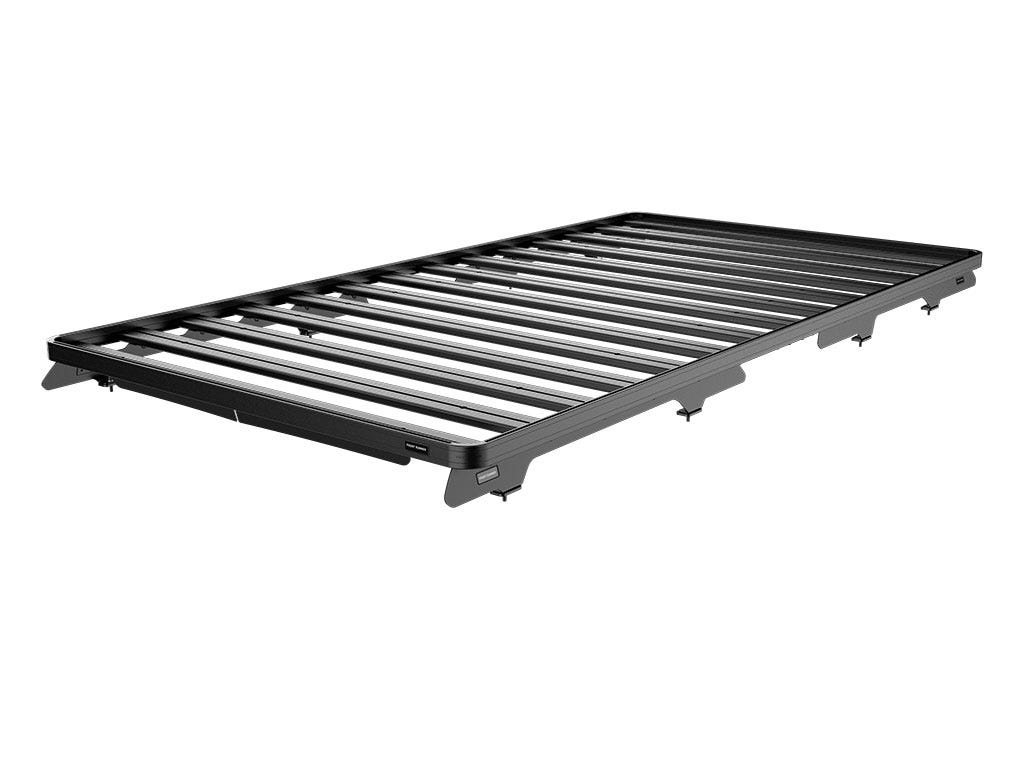

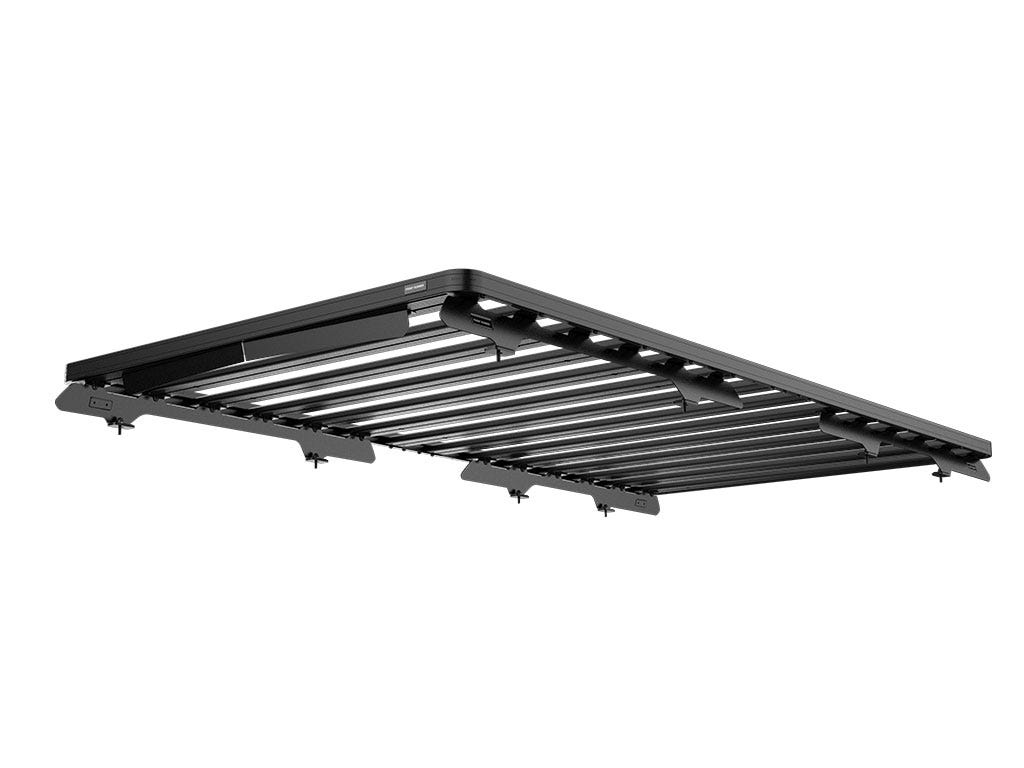

This 2772mm/109.1” long full-size Slimline II cargo roof rack kit contains the Slimline II Tray, Wind Deflector and 4 Foot Rails to mount the Slimline II Tray to your Ford Transit Passenger Van XLT (USA 148 SPEC) (Euro L3H2 L3H3 Spec). Easily installs using the existing factory mounting points. No drilling required.

Additional information

KRFT001T – Ford Transit 4th Gen (2013-Current) Slimline II Roof Rack Kit – by Front Runner
Consisting of:
1 x FAFT001 – Ford Transit 4th Gen (2013-Current) Foot Rails – by Front Runner1 x RRSTM14 – Slimline II Tray – 1475mm(W) X 2772mm(L) – by Front Runner

Material used:
Black epoxy powder-coated T6 aluminium3CR12 Stainless Steel
Approximate Installed Weight 43kg (95lbs)

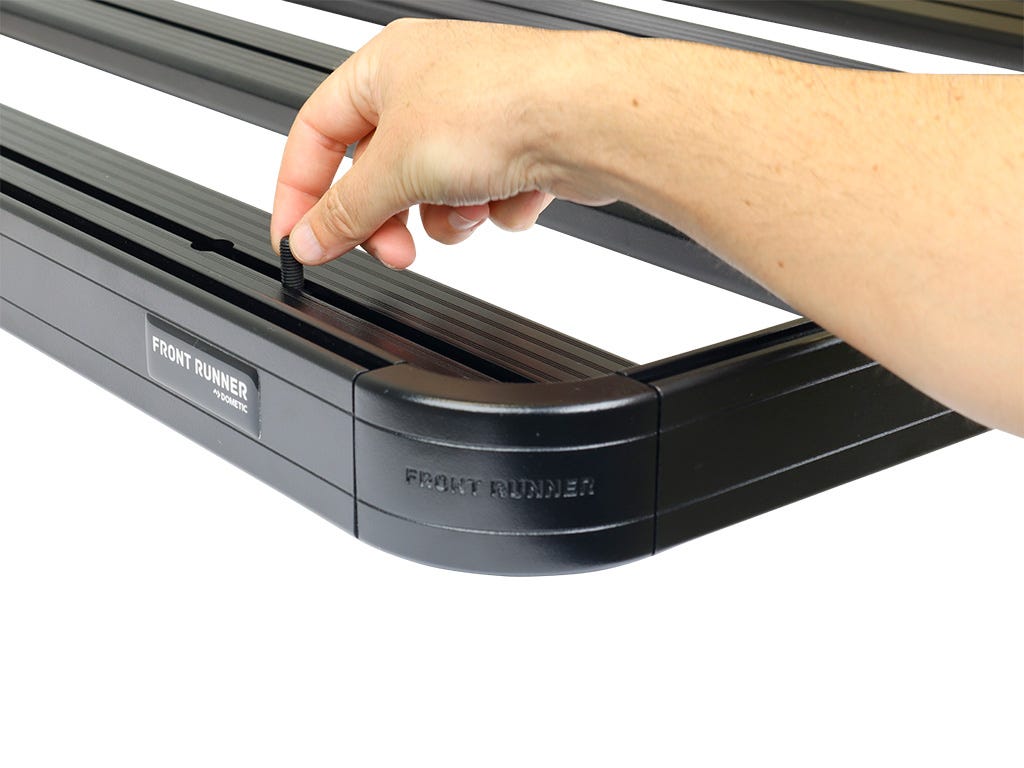

The t-slots on the tops and bottoms of the rack tray slats and edge profiles accommodate standard 8mm bolts.
To determine the approximate height from your vehicle‚Äôs roof to the top of your Slimline II Roof Rack, add the height of the Slimline II Tray (50mm/ 2”) to the height of the Foot, Grab-on Foot or Strap-On Foot listed above.If your Slimline II Roof Rack kit uses Legs, add the height of the Slimline II Tray (50mm/ 2”) to the height of the Legs to determine the height of the rack from your vehicle‚Äôs rain gutters.If your Slimline II Roof Rack kit uses Foot Rails, add the height of the Slimline II Tray (50mm/ 2”) to the height of the Foot Rails to determine the height of the rack from the crown (highest point) of the vehicles roof.

Shipping Dimensions:
Width¬†500mm (20”)Length¬†1610mm (63”)Height 300mm (12”)

Shipping Weight:
Weight 50.3kg (110.6lbs)
