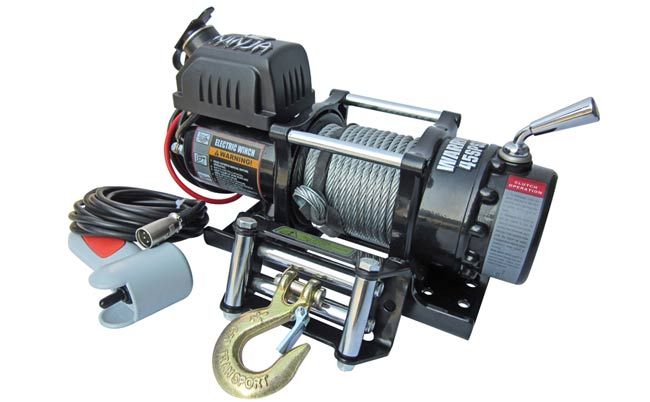

Warrior Winch Ninja 4500
€ 224,00 incl. BTW
- Ideal for trailers and trailers
- The powerful compartments ensure ultimate performance
- Choice of winch rope or steel cable
Details
The Warrior Winch Ninja series winches are designed for use with a trailer or trailer.
Partly due to the powerful motor and heavy-duty clutch, the Ninja 4500 has ultimate performance and high reliability.
The heavy-duty steel gearing and the watch-tight heavy-duty relays further improve performance.
There is a choice of synthetic winch rope or a standard steel cable, but the winch rope is ideal for use because of the steel drum.
To complete the picture, there is a waterproof 4 PIN connection, making it possible to use the plug-and-play wireless control.
This control can be optionally added buy.
The Warrior Winch Ninja 4500 has many advantages and features.
- Sealed, high power motor
- Heavy-duty waterproof switches
- All steel planetary gear
- Reinforced steel drum
- Watertight control connection
- High-gloss, scratch-resistant paint
The following supplies are included as standard :
- Wired control, 3.8m
- Heavy-duty aluminum fairlead
- Heavy-duty battery leads
- 3000,0 kg folding block
- Mounting tray and accessories
- 1/4 hook
Heeft u vragen over dit product? We helpen u graag!
Specifications
Additional information
- Rated drawbar pull: 2041.0 kg
- Engine specifications (12V): 3.2 hp / 2.4 kW< /li>
- Engine specifications (24V): 3.9 hp / 2.9 kW
- Gear: 172:1
- Brake action: Dynamic
- Drum dimensions: 45.0 x 97.0 mm (Dia x L)
- Cable (winch rope): 6.4 mm x 14.5 m (Dia x L)
- Cable ( steel cable: 6.0 mm x 15.0 m (Dia x L)
- Size: 360.0 x 126.0 x 165.0 mm
- Weight: 13.0 kg
| Traction(kg) | Speed (m/min) | Amperes, 12V | Amperes, 24V |
| 0 | 3,6 | 20 | 15 |
| 680 | 2,8 | 70 | 40 |
| 1134 | 2,4 | 100 | 65 |
| 1587 | 2,0 | 140 | 80 |
| 2041 | 1,5 | 200 | 130 |
| Cable layer | Traction (kg) |
| 1 | 2041 |
| 2 | 1652 |
| 3 | 1388 |
| 4 | 1196 |
