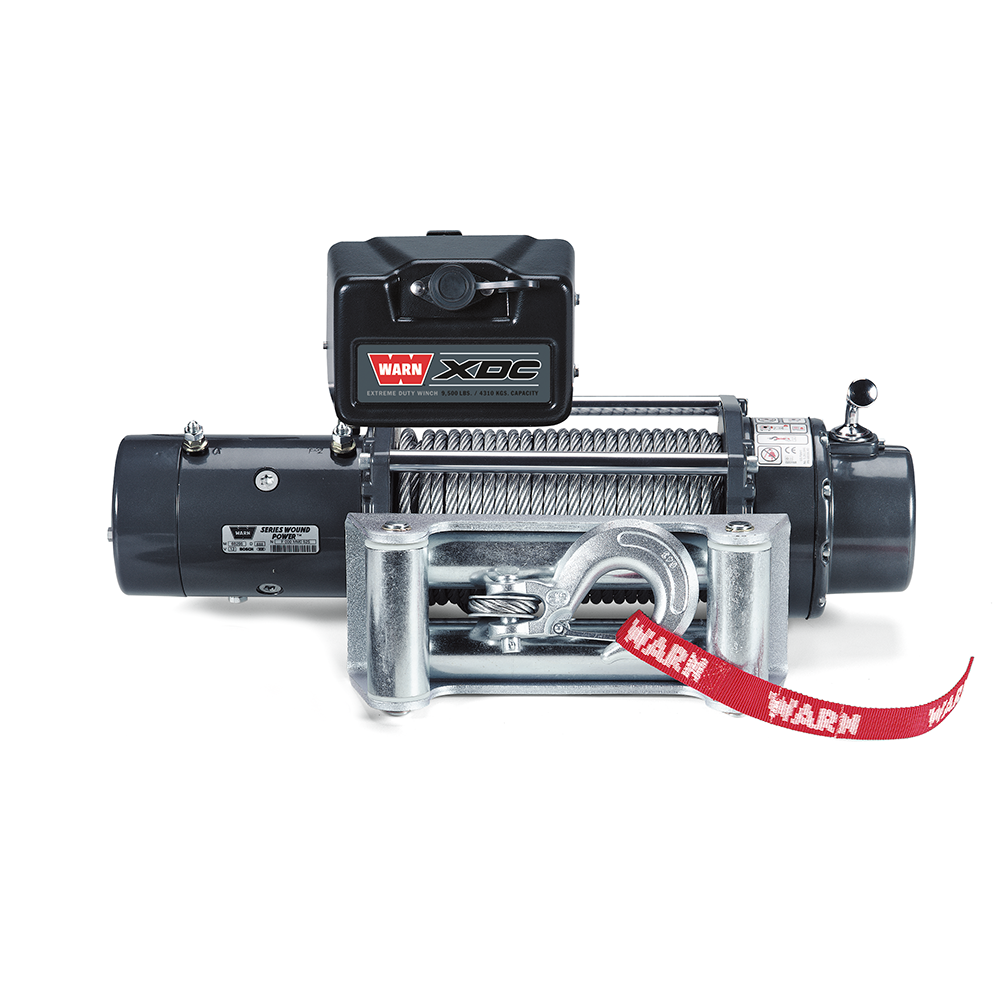

Warn 9.5XDC Winch

A winch that will perform in the harshest environments.

• Comes with hook, remote control on 12’ (3.7m) lead, hand-held wireless remote and polished aluminum hawse fairlead.
• Thermometric protection device to ensure long motor life by suspending winch operation if the motor’s
temperature becomes elevated beyond its normal operating range.
• Series-wound winch motor is strong and reliable.
• Extreme-duty winch sealing. Enables superior water resistance.
• Extended-duty control pack delivers long duty cycle to help you tackle the most demanding pulls.
• 3-Stage planetary geartrain. Proven to be the most reliable efficient and durable design.
• Exclusive brake design. Provides superior operator control when winching.
• Includes both corded and wireless winch controls.
• Remote-mount control box allows for various mounting options.
• High gloss, chip-resistant powder-coated finish. Provides superior corrosion resistance.

Additional information

General specifications:

• Brand: Warn
• Model: 9.5 XDC
• Rated line pull: 9,500 lbs.¬†(4310 kgs.) single-line
• Motor: 12V Gen II, Series Wound
• Electrical controls: Contactor
• Remote Control: Remote switch, 12‚Äô (3.7m) lead and hand-held wireless (optional)
• Length: 55,5 cm
• Width: 16,0 cm
• Height: 19,2 cm
• Weight: 39,5/30,8 kg

For more specifications:

Spec sheet Warn 9.5 XDC Winch



Shipping specifications:

• Length: 60,0 cm
• Width: 20,0 cm
• Height: 22,0 cm
• Weight: 40,0/32,0 kg
